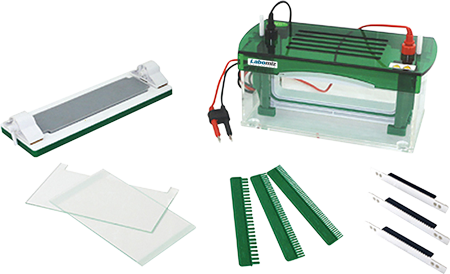

Vertical Electrophoresis Unit MVEU-1B

Vertical Electrophoresis Unit MVEU-1B is a leak proof electrophoresis unit with a capacity of 3500 ml buffer volume. Large quantity buffer ensures cooling effects and stable pH value during experimental process. Precast gel core prevents affecting the operation of gel making during electrophoresis

Glass tray (W x L)	216 x 220 mm
Gel tray (W x L )	186 x 205 mm
Comb thickness	1 mm
Comb throughput	25, 40, 52 samples
Amount of Gel	1 to 2 pieces
No of samples	25 to 52
Buffer volume	3500 ml
External size (L x W x H )	280 x 140 x 250 mm
Package size (L x W x H)	460 x 400 x 450 mm
Gross weight	9 kg

No of samples - 25 to 52

Safety switch for lid opening

Auto switch off when lid is removed

Fast set up time and leak-proof operation

Bias power supply (BPS-3) for controlling circuit

Used in healthcare, forensic, research and clinical lab, microbiology, biochemistry for separation, purification and preparation of nucleic and proteins samples, etc.

MVEU-1B

1	Cooling circulation device

1	Body tank with electrode x 1,Gel casting base x 2,Notched glass plates x 4
2	1 mm bonded glass spacer x 4, 1 mm thickness 25 wells comb x 2
3	1 mm thickness 40 wells comb x 2 ,1 mm thickness 52 wells comb x 2
4	25 well guide sample device x 2, 40 well guide sample device x 2
5	52 well guide sample x 2
