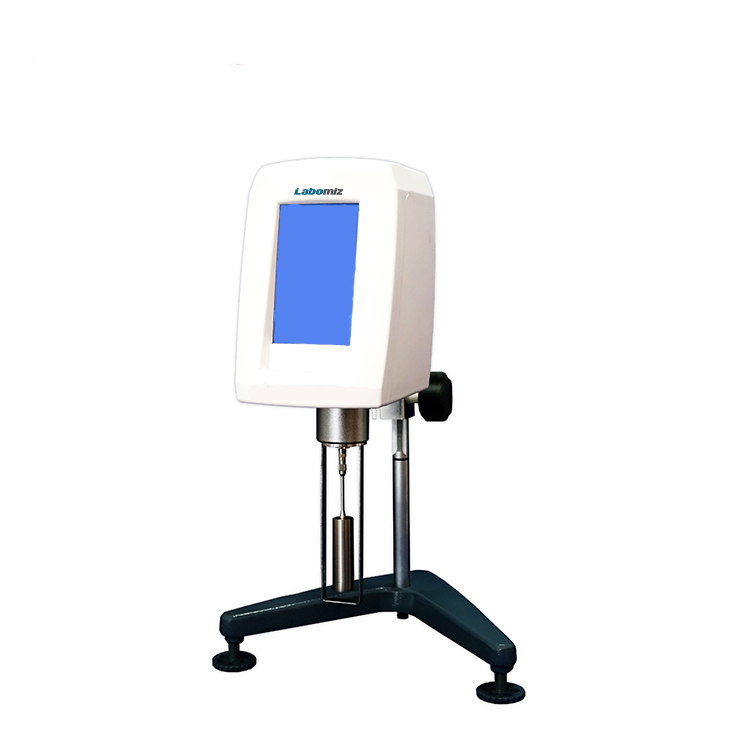

Touch screen viscometer MTSV-2A

Touch screen viscometer MTSV-2A is a bench-top unit with a touch panel for easy control of system parameters. Standard sample cylinder available with the unit. Four rotors are available with the unit, for varying application. Control panel displays parameter such as Viscosity, temperature, dynamic viscosity, density, torque, shear rate and rotor speed.

Measurement range1 mPa.s ⁓ 2 × 105 mPa.s
Sample Consumption15 ml ⁓ 25 ml
Display5 inch color TFT
Measurement error≤ ± 1 % ( F.S )
Weight linearity± 0.5%
Power supply110 V ⁓ 220 V
60 Hz ⁓ 50 Hz
Data storage30 set data
Dimensions300 × 300 × 450 mm
Weight4 kg

Aluminum alloy case ( Resistance to corrosion )

Five inch color touch screen panel

Auto display of maximum measuring range

Different speed rotors are available

Density value used to display kinematic viscosity

Real time trend display for user interpretation

Automatic scan recommends rotor and speed

Provision to store data for future study

Used to measure viscosity of fluids, including paints, cosmetics, inks, paper, food, oil, starch, solvent-based adhesive, biochemical products and other industries.
