Krebs-Stormer Viscometer MSTV-1A | Labomiz

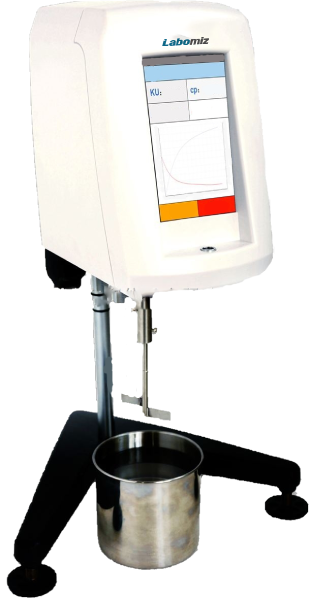

Krebs-Stormer Viscometer MSTV-1A

Krebs-Stormer viscometer MSTV-1A is a bench-top unit featuring thirty set of test procedures to perform varying tests. Two interfaces to connect to the computer and printer. Computer controlled precise auto-calibration. Display and stores the measured data including sample KU ( Krebs unit), gm, cP value, Temperature, Torque and date, etc. Conforms to International ASTM D562.

Speed	200 rpm ± 0.1 rpm
Measurement range	40.2 KU ⁓ 141.0 KU 32 g ⁓ 1099 g 27 cP ⁓ 5250 cP
Time	1 min ⁓ 99 hrs.
Display	5 inch LCD color touch screen
Measurement accuracy	± 1 %
Measurement repeatability	± 0.5 %
Storage	30 set data
Power supply	110 V / 60 Hz 220 V / 50 Hz
Dimensions	300 × 300 × 450 mm
Weight	4 kg

Aluminum alloy case ( Resistance to corrosion )

Real-time viscosity curves for visual interpretation

Storage of measured data and curves

Serial port to connect computer

Parallel port for printer

Safety alarm for measuring rang warning

Used to measure the viscosity of liquid such as paint, resin, ink and coating fluids. Widely used for industrial and research applications.

MSTV-1A

Constant temperature circulating bath

Temperature probe

Viscosity standard liquid

Software

Printer
