Micro Volume Nano Spectrophotometer MMVS-2A | Labomiz

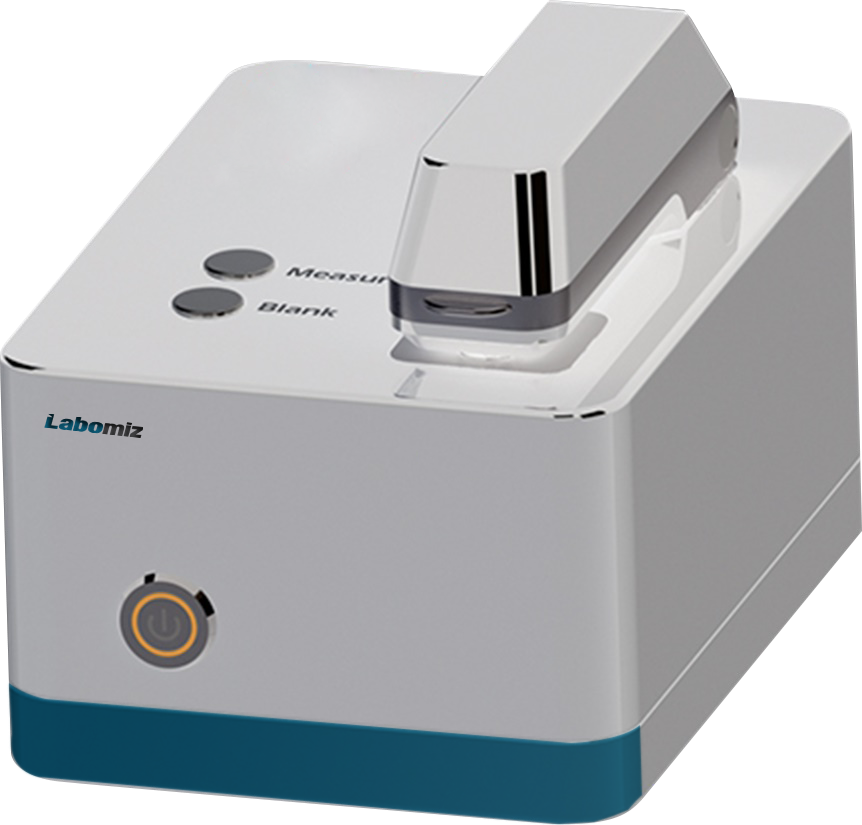

Micro Volume Nano Spectrophotometer MMVS-2A

Micro Volume Nano Spectrophotometer MMVS-2A is a single beam light intensity measuring instrument for microscopic samples. It features uniquely designed sample holder for trace elemental analysis. It is characterized with Mini HID lamps for reduced stray light.

Wavelength range	190 nm ~ 850 nm
Spectral bandwidth	1 mm; 0.2 mm
Test accuracy	0.1 Abs ~ 5 Abs ±0.1 Abs 5 Abs ~ 80 Abs ±2%
Ultra-micro optical distance	1 mm; 0.2 mm
Minimum sample capacity	0.5 µL
Optical system	Single beam (1200 lines/mm grating)
Absorbance accuracy	2% (0.76 at 257 nm)
Absorbance resolution	0.002 Abs (1 mm)
Absorbance area	0.02 ~ 80 (10 mm)
Test time	5 s
Detector	3648 pixel linear CCD array
Light source	Mini HID xenon lamp
Sample test platform material	304 stainless steel and quartz
Wavelength accuracy	1 nm
Power	24 W
Power supply	AC 110 V ±10%; 50 Hz AC 220 V ±10%; 60 Hz
Dimensions	200 × 130 × 136 mm
Net weight	2.5 kg
Gross weight	5 kg

Dual platforms for sample analysis in Ultra micro and standard cuvettes
Direct analysis of samples without dilution
Microscale sample testing
Direct analysis without warming of samples
Detection container not required

Used for qualitative and quantitative measurement of microscopic samples in the research fields of nucleic acids, proteins, bacterial concentration, virology, forensics, biology, etc.

MMVS-2A

Sr. No.	Name of the accessory	Quantity
1	Driver software CD`	1 unit
2	Power line	1 unit
3	Power adapter	1 unit
