Muffle furnace MMFF-1A | Labomiz | Laboratory Equipment

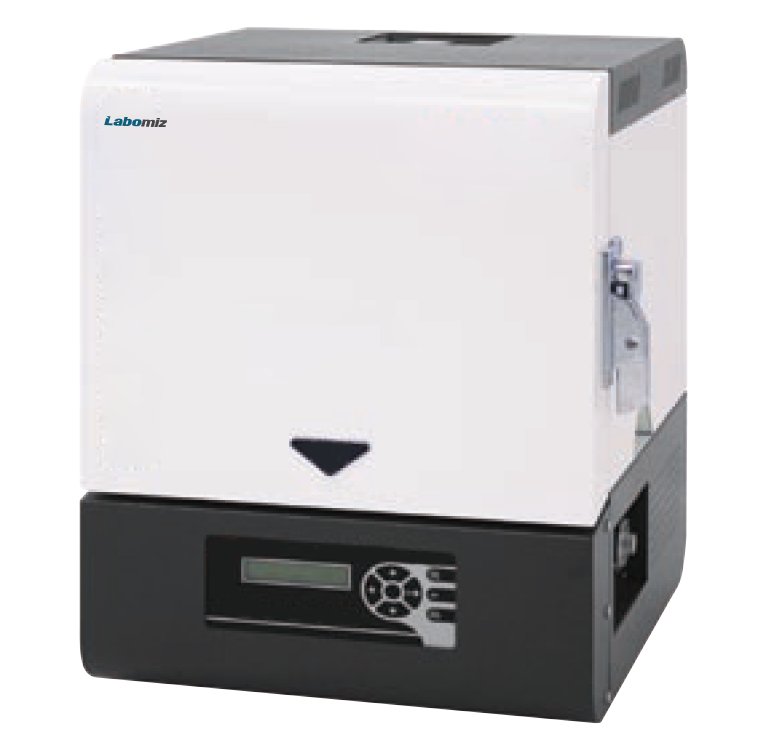

Muffle furnace MMFF-1A

Muffle furnace MMFF-1A is a table top unit with ceramic type heating chamber. Features PID controlled temperature regulation and sensor alarm functions. Optional forced exhaust system. Auto-tuning function is available and these muffle furnaces have independent overheat protector attached.

Capacity	3 L
Internal dimensions	130 x 250 x 90 mm
External dimensions	390 x 480 x 550 mm
Maximum temperature range	1100 °C
Heater capacity	1.4 kW
Working temperature	300 °C ~ 1000 °C
Temperature controller	Digital PID controller (Program type: 5 pattern 90 segment)
Timer	99 hr. 59 min
Sensor	K-type
Heater	Kanthal A1, 4 side heating
Insulation	Ceramic Fiber
Power	AC 220 V, 1 Ø ,50 Hz / 60 Hz
Weight	30 kg

Sensor alarm function

PID controlled temperature

Ceramic Fiber located on the left and right side absorbs the heat

Temperature compensation to adjust the systems performance

Auto-tuning function

Oxygen, nitrogen and an inert gas that can flow is optional

Normal Non-programmed type is optional

PC control function is optional

RS-232C function is optional

Used in industries and biotechnology research laboratories in providing heat treatment, melting of the glass, melting the metal and casting molding.

MMFF-1A

Accessory Number	Accessory
1	Heat-resistant gloves
2	Crucible
3	Crucible tongs
4	Ceramic fiber plate
