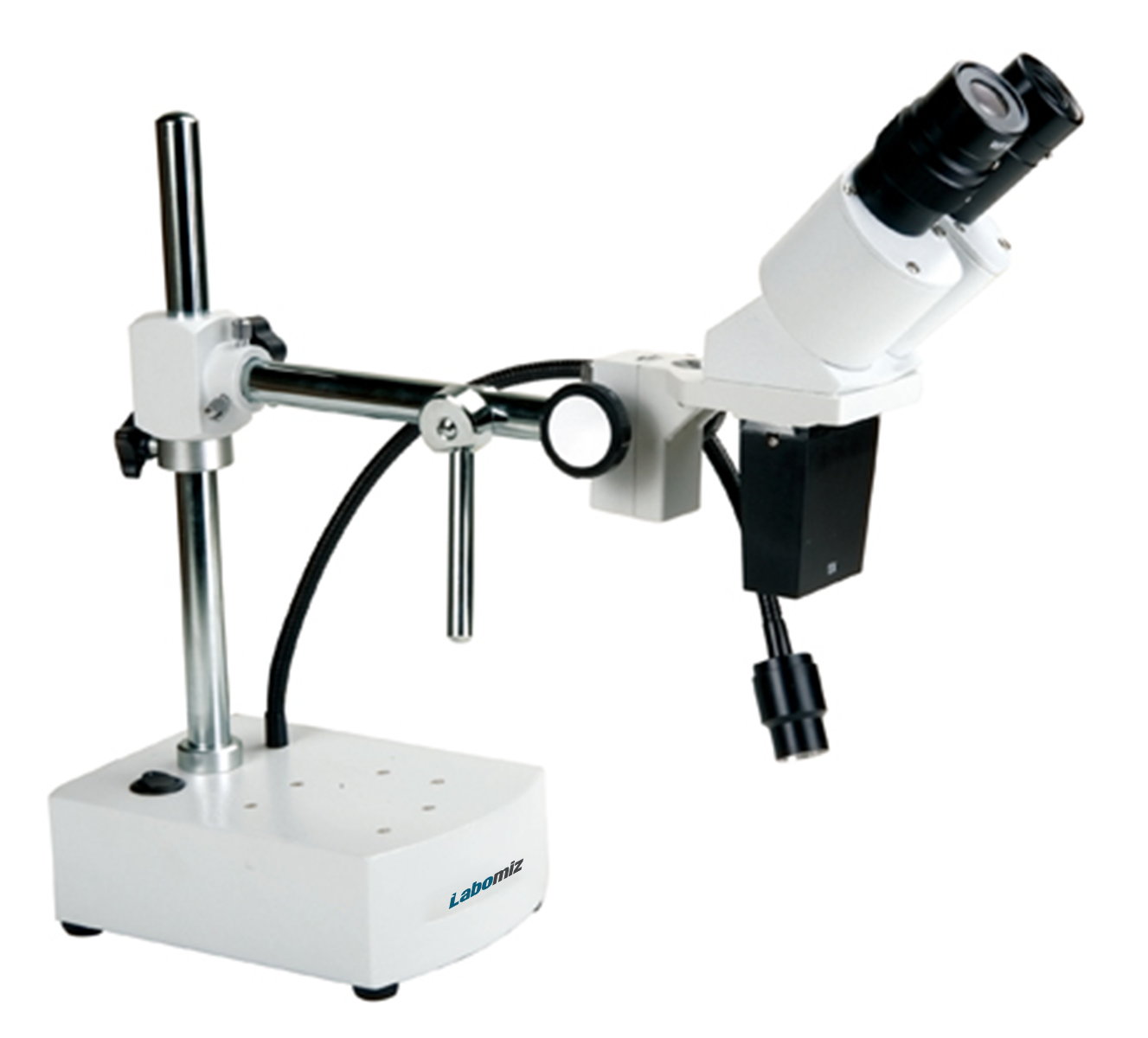

Long Working Distance Stereo Microscope MLWDM-1A

Long working distance stereo microscope LMLWDM-1A is a bench-top unit featuring an inclined binocular head with locked eyepiece. Built-in objectives gives a 230 mm working distance expandable to 250 mm. LED light provides uniform illumination with long life span. Diopter adjustment by left eyepiece.

Viewing headBinocular
EyepieceWF 10X / 20 mm
Inclination45°
Diopter adjustment± 5 dp
Tube diameter23.2 mm
Inter-pupillary distance55 mm ⁓ 75 mm
Objective1X W.D : 230 mm
Illumination ( Incident )3 W
Power supply110 V / 60 Hz
220 V / 50 Hz
Dimensions410 × 200 × 430 mm
Weight6 kg

Adjustable inter-pupillary distance ( Maximum comfort )

Sharp stereo erect image

LED lamp ( high brightness )

Easy replaceable V-shaped inserted objective

Used widely for school education. Used in circuit board inspection and repair, SMT work, electronics inspection, coin collecting, gemstone setting, engraving, inspection and repair of small parts.
