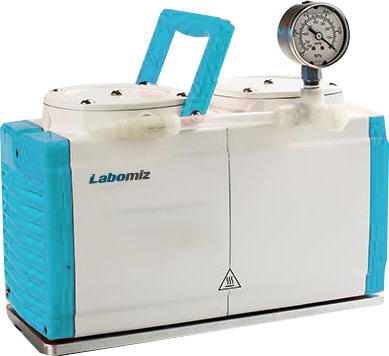

Diaphragm Vacuum Pump MLDVP-1E
Diaphragm Vacuum Pump MLDVP-1E with nitrile (NBR) pump material is equipped with automatic cooling exhaust system to ensure continuous 24 hours operation & deliver contamination-free air, gases or vapours. Its high quality classical axle tree design enables steady running with low noise and high operating efficiency. It can operate independently or as part of a modular system and require minimal maintenance.
| Pumping Speed | 30 L/min |
| Ultimate Pressure | ≥ 0.095 MPa |
| Vacuum | 50 mbar |
| Material of diaphragm pump | Nitrile Rubber (NBR) |
| Power | 160 W |
| Inlet | φ 6 mm |
| Outlet | Silencer |
| Temp. of Body | < 55 °C |
| Ambient Temp. | 7 to 40°C |
| Pump Head | 2 |
| Noise Level | < 60 dB |
| Power Supply | 220 V, 50 Hz |
| Dimension | 300 × 120 × 235 mm |
| Weight | 9 kg |
Eco-friendly oil-free displacement pumping |
Air exchange bin with filtering system for clean flow of air |
Self-cooling air draft system |
High quality classical axle tree design |
Frictionless operating system |
Nitrile rubber (NBR) diaphragm pump for organic solvents applications |
User-friendly operations |
Used for vacuum absorption, filtration and vacuum distillation, vacuum drying to extract, to transfer and to deliver contamination free air and gases across Life science , pharmacy, chemistry, food & packaging industry.
