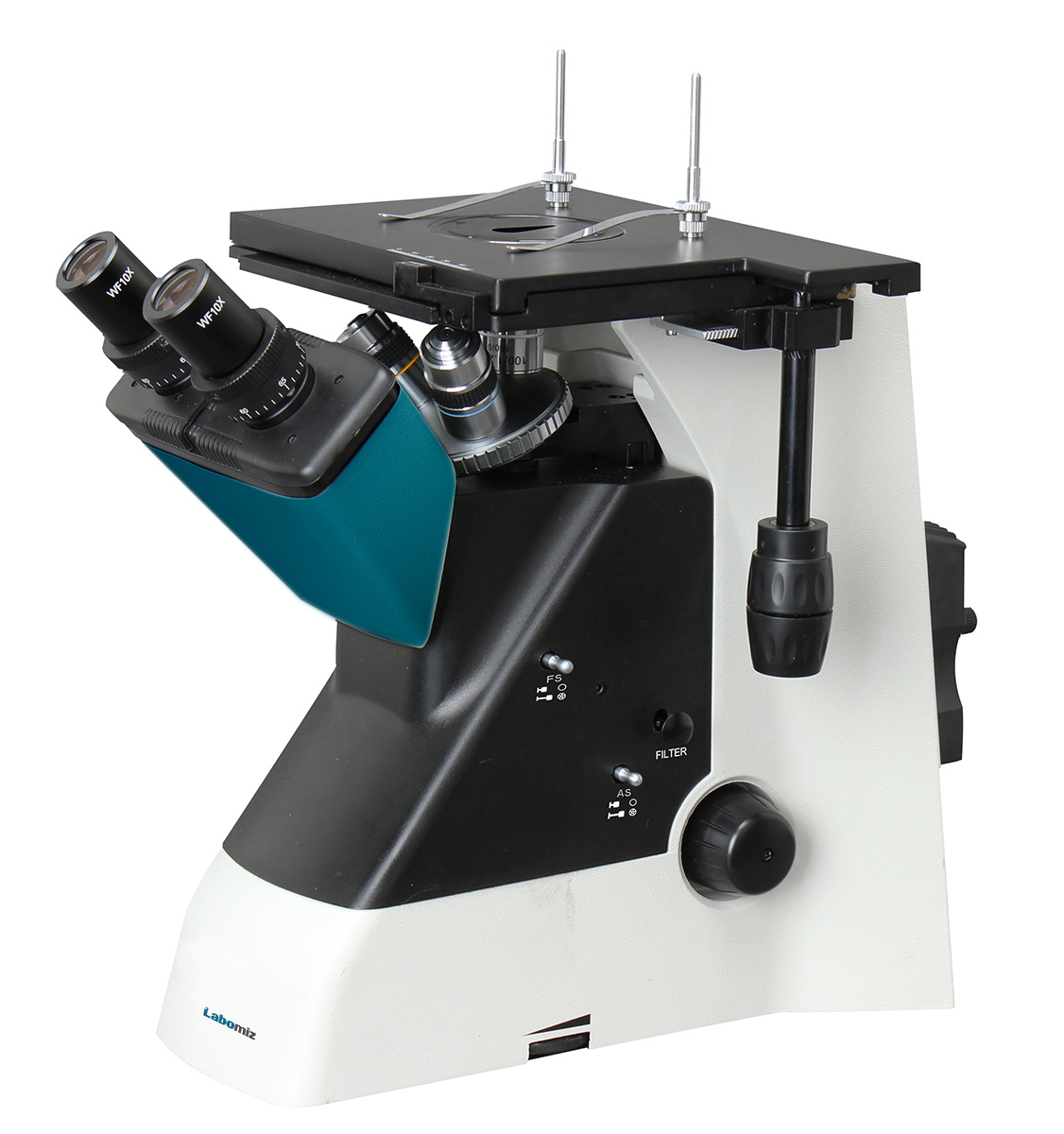

Inverted Metallurgical Microscope MIUM-2C
Inverted Metallurgical Microscope MIUM-2C is a tabletop inverted microscopes with infinity plan achromatic objectives. Features superior coaxial coarse and fine focusing adjustment. Four color filters with a brightness adjustable halogen lamp. Digital cameras can be added to the trinocular tube to take images and make image analysis.
| Viewing Head | Tinocular viewing head |
| Eyepiece | Wide field eyepiece WF10X/18 mm Wide field eyepiece WF12.5X/14 mm |
| Objective | Achromatic objective 10X/0.25, WD=6.3 mm Plan achromatic objective 40X/0.65, WD=0.7 mm Achromatic objective 100X/1.25(oil), WD=0.1 mm |
| Nosepiece | Triple nosepiece |
| Focus | Fine division 0.002 mm Focusing range 30 mm |
| Stage | Mechanical stage 180 × 155 mm Moving range 40 × 30 mm Stage Clip |
| Illumination | Kohler illumination, 12 V / 20 W Halogen lamp |
| Filter | Blue, Green, Yellow and Ground filter |
Vertical objective movement for focusing |
Infinity plan achromatic objectives |
Infinite optical system provides excellent optical functions |
Stable stand structure and comfortable operation |
Blue filters for cooler and more neutral color of image |
Green filters correct spherical achromatic aberrations |
Ground glass filters for more even and diffused light |
Used in institutes and laboratories to observe and identify the structure of various metal and alloy, in electronics, chemical and instrumentation industry, to observe the opaque material and transparent material.
