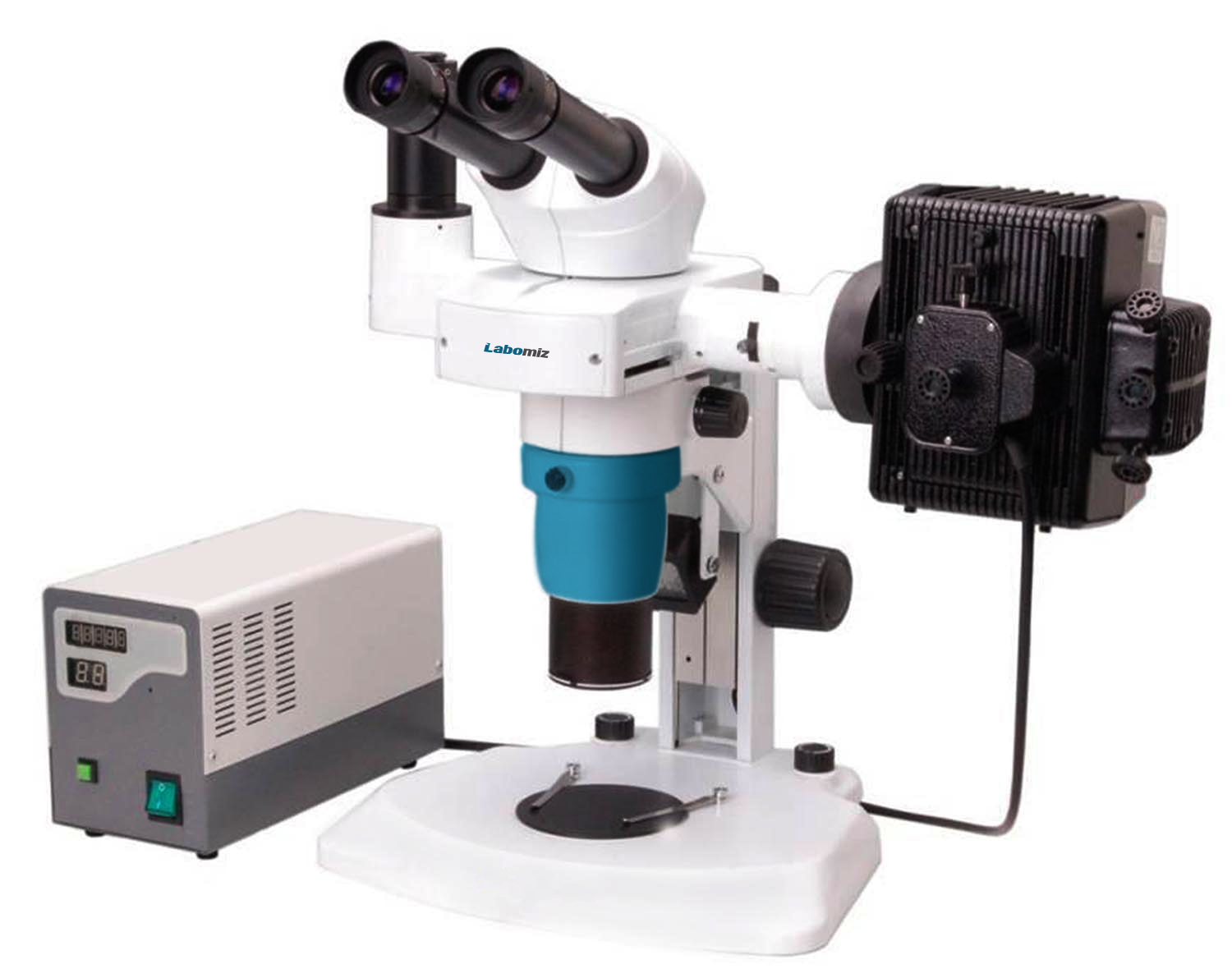

Fluorescent Stereo Microscope MFSM-1B
Fluorescent Stereo Microscope MFSM-1B cover a wide magnification range from 2.4X ~ 480X. It allows the scientist to see and photograph specimens from macro views to high-magnification micro visualization. Additional photo tube comes with the microscope, CCD camera can be mounted on the photo tube for image capture and analysis.
| Zoom objective | 0.8X ~ 6.4X |
| Zoom ratio | 1:8 |
| Optical system | Infinite parallel zoom optical system |
| Viewing head | Binocular head |
| Viewing head inclination angle | 20° inclination |
| Interpupilary distance | 55 mm ~ 75 mm |
| Eyepiece | EW 10X / φ 22 mm |
| Fluorescent attachment | GFP-B (EX460-500,DM505,BA510-560) GFP-L (EX460-500, DM505, BA510) |
| Objective | Plan achromatic objective 1X, W.D.: 78 mm |
| Focusing range | 105 mm |
| Stand | Coaxial coarse focusing stand |
| Illumination | 101 W Ultra hi-voltage spherical mercury lamp |
Infinity parallel optical system |
High-eyepoint eyepieces with diopter adjustment provides comfortable viewing |
High quality epi-fluorescence attachment allows easy observation of living cells under fluorescence methods such as GFP |
Switching between fluorescence and transmitted illumination is quick and easy |
Power supplier with digital display |
Transmitted & incident LED illumination |
Adjustable brightness |
Used in biology, life science, forensic Science, embryology / IVF, lab-on-a-Chip, palaeontology, marine biology and regenerative studies.
