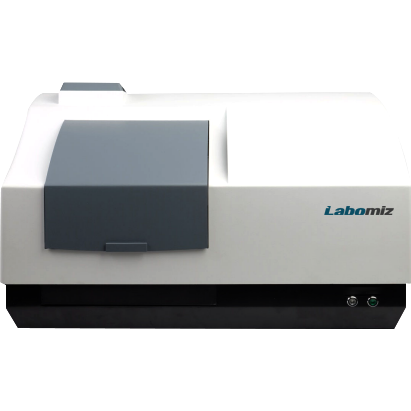

Fluorescence Spectrophotometer MFLS-1C

Fluorescence Spectrophotometer MFLS-1C

Fluorescence spectrophotometer MFLS-1C is a high-performance molecular luminescence analysis equipment designed for high performance, with high signal to noise ratio, ultra-high scanning speed, ultra-high resolution, ultra-high wavelength accuracy and a variety of accessories.

Excitation Source150W xenon lamp
Excitation and Emission Wavelength200nm~900nm
Excitation and Emission Slitlnm/2nm/5nm/10nm/20nm
Wavelength Accuracy±0.4nm
Wavelength Repeatability<0.2nm
Signal-to-Noise RatioS/N>350(P-P) S/N>1500(RMS) S/N>15000(RMS BG)
Limit≤ 5 × 10-11  g /ml（Quinine Sulfate Solution）
Linearityy>0.995
Peak Repeatability<1.5 %
Wavelength Scan SpeedMulti-speed Level, Maximum at 60000nm/min
Minimum sample size0.5mL (Using a standard 10mm square sample cell)
Octave filterBuild in
Photometric Quantity Range-9999 ~ 9999
Response Time0.02/0.1/0.5/1/2/4/8 s, Auto adjust
Data TransportationUSB2.0
Power200W
Dimension610x460x365 mm
Gross Weight26kg

Quantum yield accessory is available
Horizontal slit optical design, with excellent luminous detection efficiency and high signal to noise ratio
Water Raman peak SNR better than 350: 1 (P-P) or 1500: 1 (RMS)
The minimum sample volume is 0.5mL when using a standard 10mm square sample cell
Wavelength scanning speed up to 60000 nm / min
Bandwidth 1/2/5/10/20nm adjustable
Fluorescence Quantum Yield accessory available
The software offers fluorescence 3D scanning, equal-wavelength difference synchronous scanning, equal wave number difference (constant energy difference) synchronous scanning functions
Multi accessories
Using high quality Xenon light source and photoelectric multiplier tube detectors and instruments to provide sufficient light intensity signal and the detection sensitivity
Built-in frequency filter. Built-in optical gate, designed for unstable sample.

Used in material research, drug analysis, biochemical and clinical testing, water quality control, food safety testing and other areas of qualitative and quantitative analysis and scientific research.
