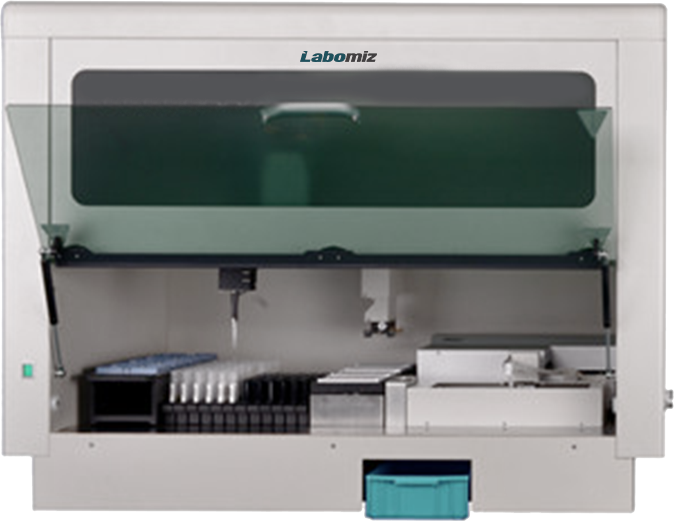

ELISA workstation MELISA-1A
ELISA workstation MELISA-1A is a fully automated immunoassay processor with multifunctional liquid handling system. It is characterized with the unique module combination of pipetting, washing, incubating and reader functions. The dispense channels feature disposable tips to avoid contamination. The workstation employs dispensing-aspirating washing mode.
| Assembly | Benchtop |
| Number of channels | 2 |
| Disposable tips | 300 µL and 800 µL |
| Pipetting range | 1 µL ~ 1000 µL |
| Pipetting increment | 0.1 µL |
| Pipetting precision and accuracy (300 µL and 800 µL) | Volume: 100 µL Accuracy: ± 1% Precision: < 0.75 % |
| Total rails | 12 |
| Control positions | 6 × 24 = 144 |
| Reagent positions | 6 × 4 = 24 |
| Plate positions | 4 + 1 ambient (optional) |
| Temperature range | RT ~ 60 °C |
| Temperature increment | 0.1 °C |
| Temperature accuracy | ± 0.5 °C |
| Washing channels | 1 × 8 |
| Selectable wash buffers | 3 |
| Wash volume | 50 µL ~ 1000 µL per well |
| Residual volume | ≤ 2 µL per well |
| Interface | USB and RS232 |
| Dimensions | 1270 × 785 × 1000 mm |
| Weight | 180 kg |
Photometric microplate reader module |
Air displacement pipetting system |
Crosswise aspiration with selectable injection height |
Liquid level, clot and empty tube monitoring |
Barcode scanning (optional)-Manual |
Multifunctional liquid handling (dilution, conjugation, aliquoting) |
Multiple and diversified dispensing |
Used to detect antigens or antibodies in serum, sputum, semen, urine, stool, supernatant of culture in the fields of microbiology, genetic profiling, biotechnology, biochemistry, zoology, clinical trials, etc.
