Digital viscometer MDV-1B | Labomiz

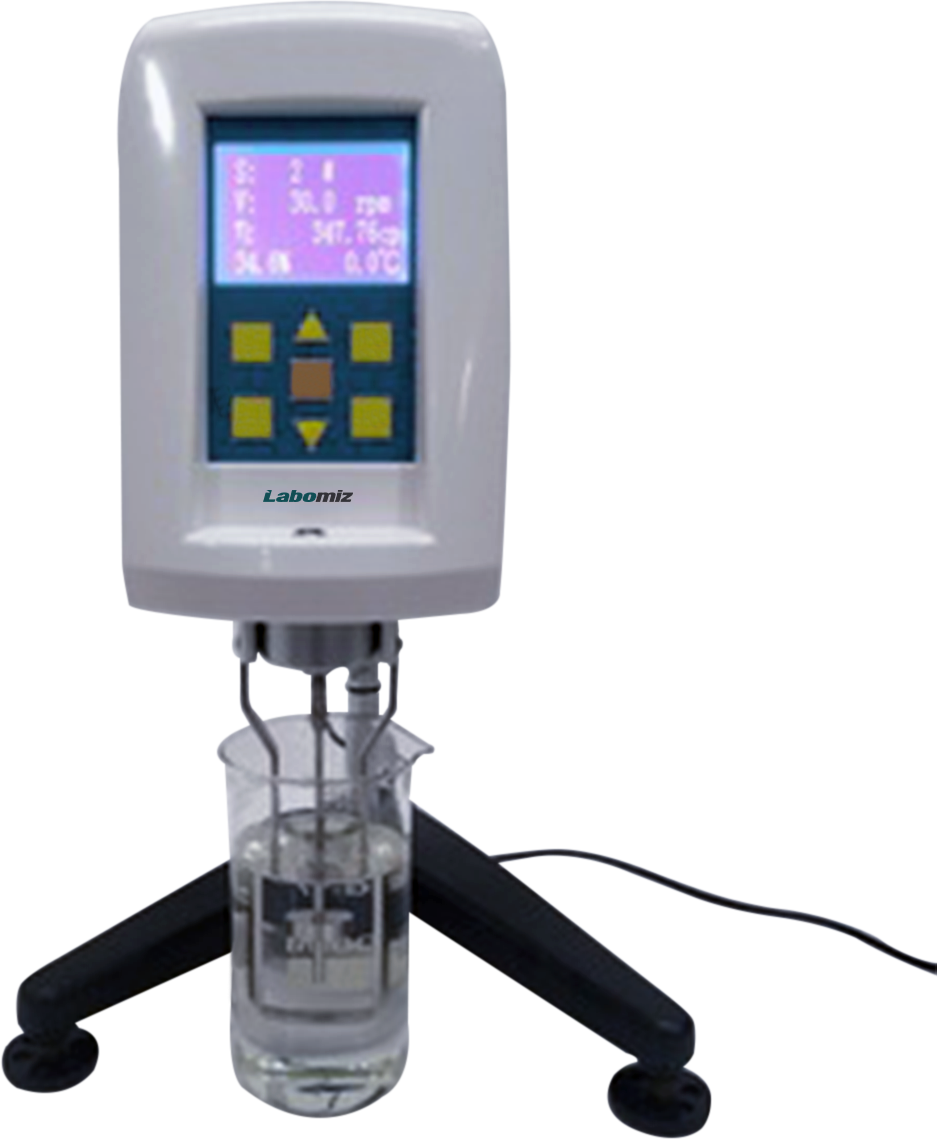

Digital viscometer MDV-1B

Digital viscometer MDV-1B is a bench top, microprocessor controlled unit. Integrated with stepping motor for stable rotation. Digital screen automatically displays measured values including 2 digits after decimal point. Timer is set to test viscosity of non-Newtonian fluids. Provision to connect micro-printer to print various data for interpretation.

Measurement range	1 mPa.s ⁓ 2 × 10⁶ mPa.s
Rotor speed	0.3 rpm, 0.6 rpm, 1.5 rpm, 3 rpm, 6 rpm, 12 rpm, 30 rpm, 60 rpm
Sample consumption	250 ml ⁓ 400 ml
Rotors	4 types
Accuracy	≤ ± 2.0 % F.S
Repeatability	± 5 %
Power supply	110 V ⁓ 230 V 50 Hz / 60 Hz
Dimensions	400 × 200 × 430 mm
Weight	4.8 kg

Adjustable horizontal display

Gearless driven ( Noiseless operation )

Blue screen digital LCD display

Screen isplays viscosity, speed, torque, rotor number etc.

Printing interface : micro-printer

Used to measure the viscosity of grease, paint, coatings, drugs, food, cosmetics, adhesive, etc. It also measures liquid viscosity resistance and absolute viscosity.

MDV-1B
