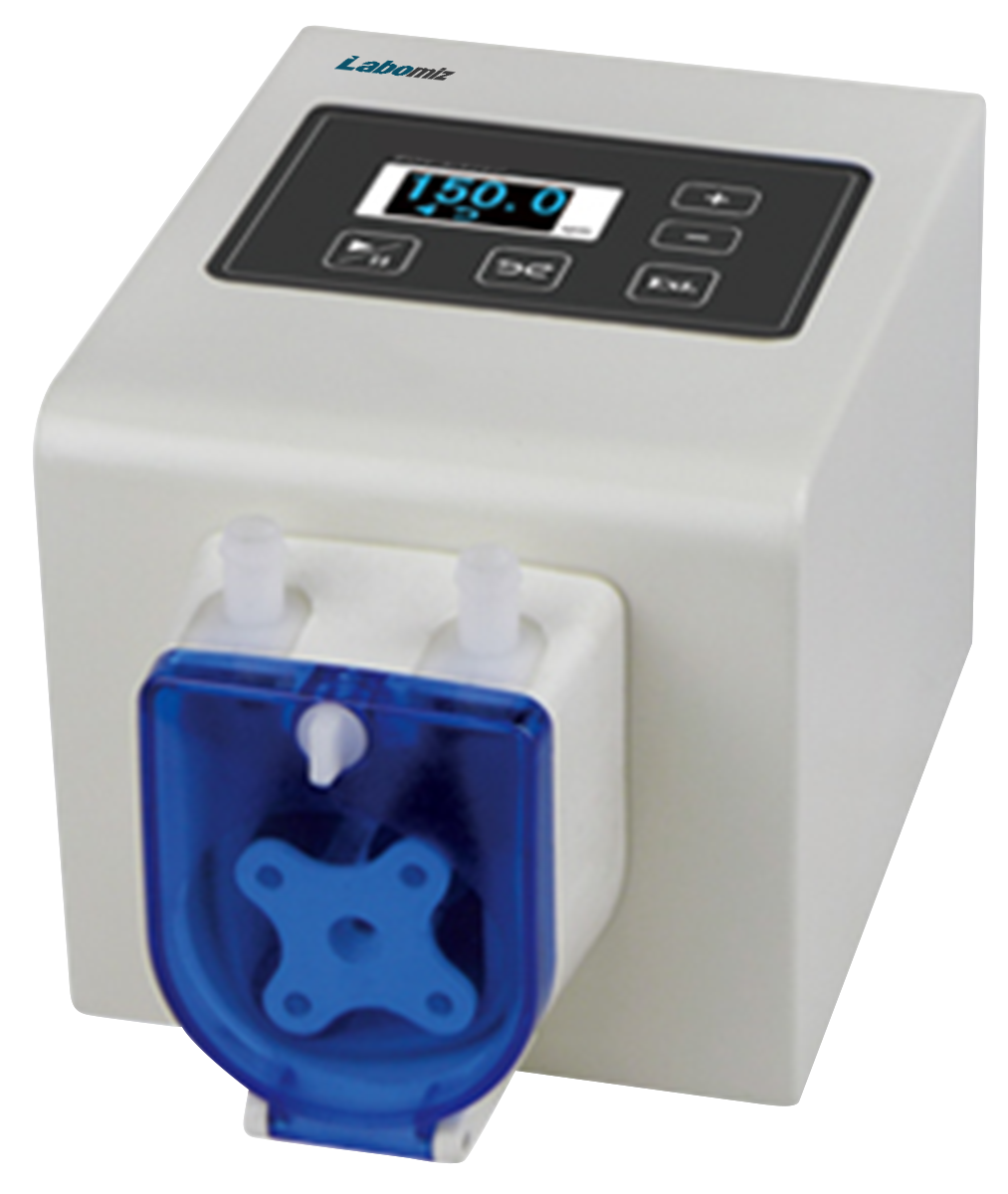

Compact Peristaltic Pump MCPP-1A

Compact Peristaltic Pump MCPP-1A is a positive displacement pump with a digital knob to control speed. It pumps out fluids with flow rates based on model type and tubing sizes. The number of channels and rollers ensures durability and performance. It is designed for processes requiring limited weight, size and low EMI interference.

Number of Channels1
Flow rate range0.08 ml / min ~ 1000 ml / min
Number of rollers2
Speed range0.1 rpm ~ 350 rpm
Speed resolution0.1 rpm
Ambient temperature0 °C ~ 40 °C
Relative humidity< 80 %
IP gradeIP31
PowerDC 24 V/1A
Dimension ( L × W × H )180 mm × 113 mm × 108 mm
Weight1.8 kg

Stainless steel, corrosion resistant structure

OLED Screen displays current motor speed, direction and working state

Mechanical keypad for controlling direction and speed

Equipped with Stepper motor drive

Water-proof groove in the pump head mounting side

Transparent cover to view working of the pump head and tubing

Polyester pump head for rigidity and precision

External control function to start / stop the unit

Digital knob to control speed

Used in waste water treatments, mining industry, chemical industry, laboratories, research institutes, food and beverage industry, etc.
