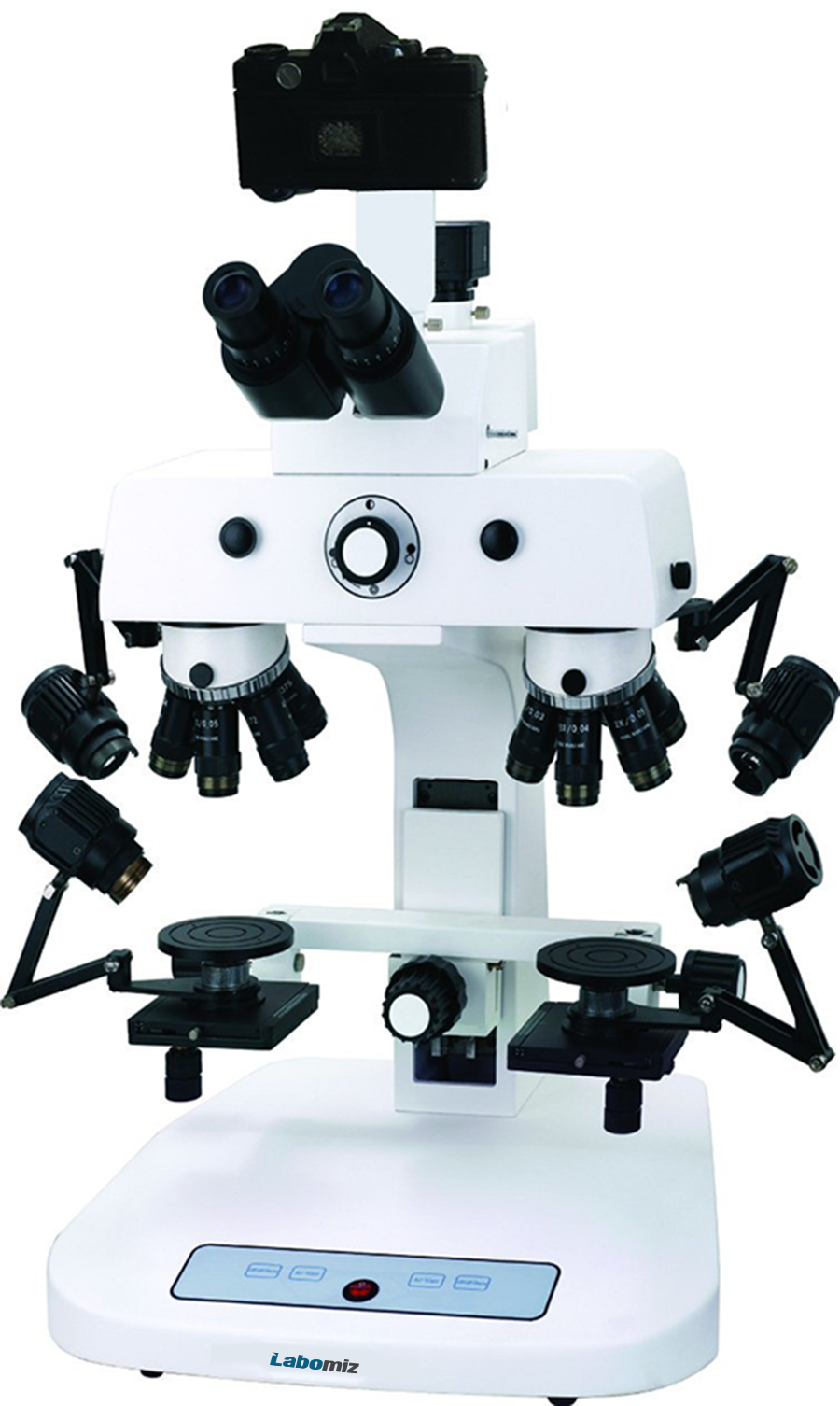

Comparison microscope MCIM-9B
Comparison microscope MCIM-9B is a benchtop unit with dual stage setup for simultaneous viewing of two separate specimens. Methods such are field cutting, jointing and overlapping are used for specimen comparison. Polarizing attachment is used for stray and glare light elimination. It features excellent optical performance and complete comparison function. C-mount video attachment can be used for synchronous observation.
| Total optical magnification | 5X ~ 120X |
| Viewing head | Seidentopf Trinocular Head Inclined at 45° Interpupilary Distance 55 mm ~75mm |
| Eyepiece | Wide Field Eyepiece WF10×/ 22mm, diopter adjustment Wide Field Eyepiece WF20×/ 12mm, diopter adjustment |
| Field of view | Φ 2 mm ~ Φ 60 mm |
| Objective | 0.5X 1X 1.5X 2X 4X 6X |
| Nosepiece | Sextuple nosepiece |
| Stage | Manually operate stage Moving range: X-54mm, Y-54mm, Z-54mm Two stage horizontal moving range: 60 mm The coarse vertical lifting range: 60 mm |
| Stage size | 100 mm × 100 mm |
| Horizontal rotation | 0° ~ 360° |
| Illumination | High power LED illumination, Brightness and angel adjustable Side illumination, 12 V / 50 W air cooled reflecting lamps Polarizing attachment |
| Dimension (L X W X H) | 390 × 380 × 700 mm |
Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation |
High resolution (can identify tiny differences between objects accurately) |
Nosepiece has stop clicks (comfortable to change the objectives) |
The transverse, longitudinal and vertical stage directions |
Two stages can be adjusted horizontally at the same time |
Images and videos can be saved and analyzed |
DSLR camera attachment |
Coaxial illumination device (optional) |
Used in forensic science, police schools, to compare and identify the bullet, tool marks, fingerprints, seals, text, signatures, drawings, and bank notes.
