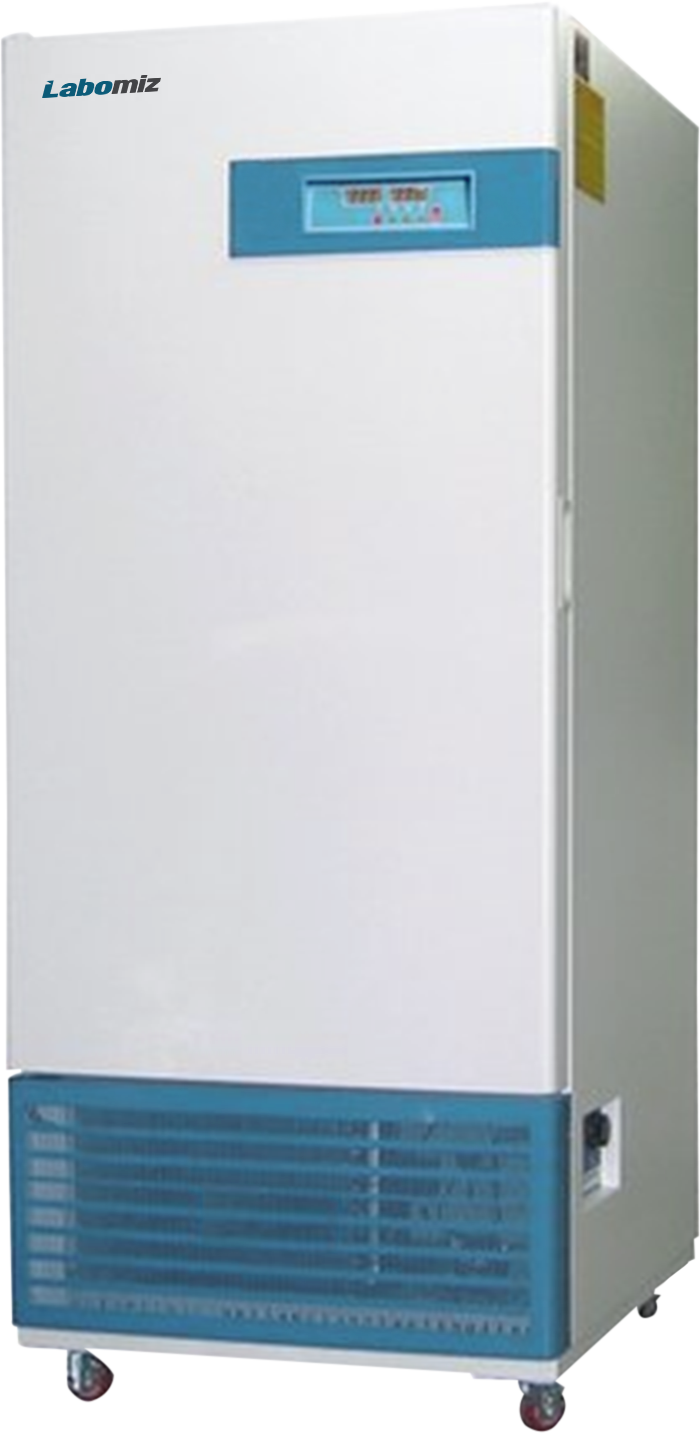

BOD incubator MBI-2C
BOD incubator MBI-2C is a low temperature unit equipped with forced convection system. Sealed compressor and insulated chamber aid in uniform temperature distribution, heat exchange and gentle air flow. Microprocessor PID auto-tuning controller ensures precise control of temperature, speed and flow. Magnetic packing absorbs vibration, thus preventing sample damage. Safety tempered glass inner door prevents heat loss and provide clear sample visualization.
| Capacity | 324 L |
| Chamber dimensions ( W × D × H ) | 600 × 450 × 1200 mm |
| Temperature range | 5 °C ~ 70 °C |
| Environmental temperature range | 5 °C ~ 25 °C |
| Temperature accuracy | ± 0.5 °C at 20 °C |
| Heating power | 1000 W |
| Fan motor power | 13 W × 3 ea |
| Circulating fan diameter | Ø 100 mm |
| Refrigerator compressor | ⅓ hp |
| Thermocouple | Pt 100 Ω |
| Power ( 1 phase ) | AC 230 V 50 Hz / 60 Hz |
| Exterior dimensions ( W × D × H ) | 760 × 770 × 1810 mm |
| Weight | 212 kg |
Solid-state relay (SSR) type temperature regulator (an electronic switching device) |
Ni-Cr heating element |
Magnetic closure with positive sealing gasket (outer door) |
Over temperature alarm (overheating prevention) |
Digital display for parameters viewing and control |
Stainless steel shelves (interior material) |
Steel plate with powder coated finish (exterior material) |
Safety devices include ELB ( elastic load balancing ) and self-diagnosis functions such as memory error, overheating, SSR and sensor short circuit for end user safety. |
Used in bacterial research, microbiology, life science, pharmacy, food processing, chemical industry, education institutes for BOD measurement, breeding experiments, culture preservation, plant cultivation, environmental testing, fermentation studies, etc.
